View details
Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 0.82 Height With Legs (mm) 914 Height Without Legs (mm) 864 Bottom Inlet To Floor (mm) 102 Max Section Depth (mm) 143 Mid Section Depth (mm) 121 Output (ΔT50, W) 109 Output (ΔT30, W) 56 Interaxis Distance (mm) 768 Section Length (mm) 76 Internal Volume (L) 1.4 Empty Leg Section Weight (kg) 8.6 Empty Mid Section Weight (kg) 7.7 Casting Origin Nottingham, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-B-DE-36-4 4 334 436 224 1 £0.00 8027 ORC-B-DE-36-7 7 562 763 392 1 £0.00 8027 ORC-B-DE-36-10 10 790 1090 560 1 £0.00 8027 ORC-B-DE-36-15 15 1170 1635 840 1 £0.00 8027 ORC-B-DE-36-20 20 1550 2180 1120 1 £0.00 8027 Related products Princess 1 Column 24in From: £0.00 Princess 1 Column 18in From: £0.00 Beeston Hospital Wide 24in From: £0.00 Duchess Scroll 1 Column 36in From: £0.00

Return Eligibility

  • Only non-perishable, unopened, and unused items are eligible for return.
  • Returns must be requested within 48 hours of delivery.
  • Perishable items (fruits, vegetables, dairy, frozen goods) are non-returnable unless damaged or incorrect.

Damaged or Wrong Items

If you receive a damaged or incorrect product, please email us within 24 hours at [email protected] with:

  • Order number
  • Product name
  • Photo of the item received

Refunds

  • Refunds (if approved) will be processed within 7 working days to the original payment method.
  • Delivery fees are non-refundable unless the issue was our fault.

No Returns for:

  • Opened or used items
  • Products with tampered packaging
  • Items returned after 48 hours

Ask a Question

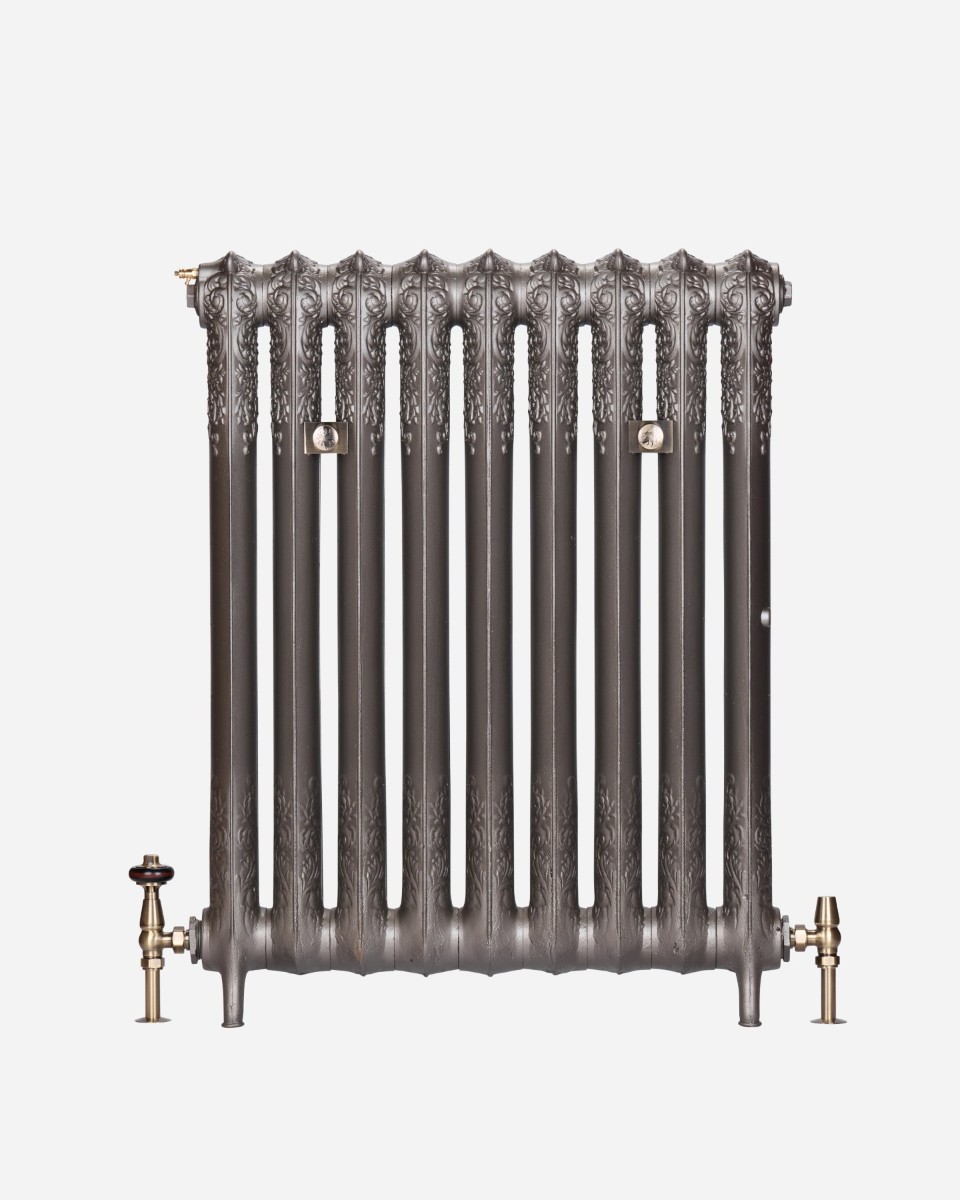

Decorated 1 Column 36in
