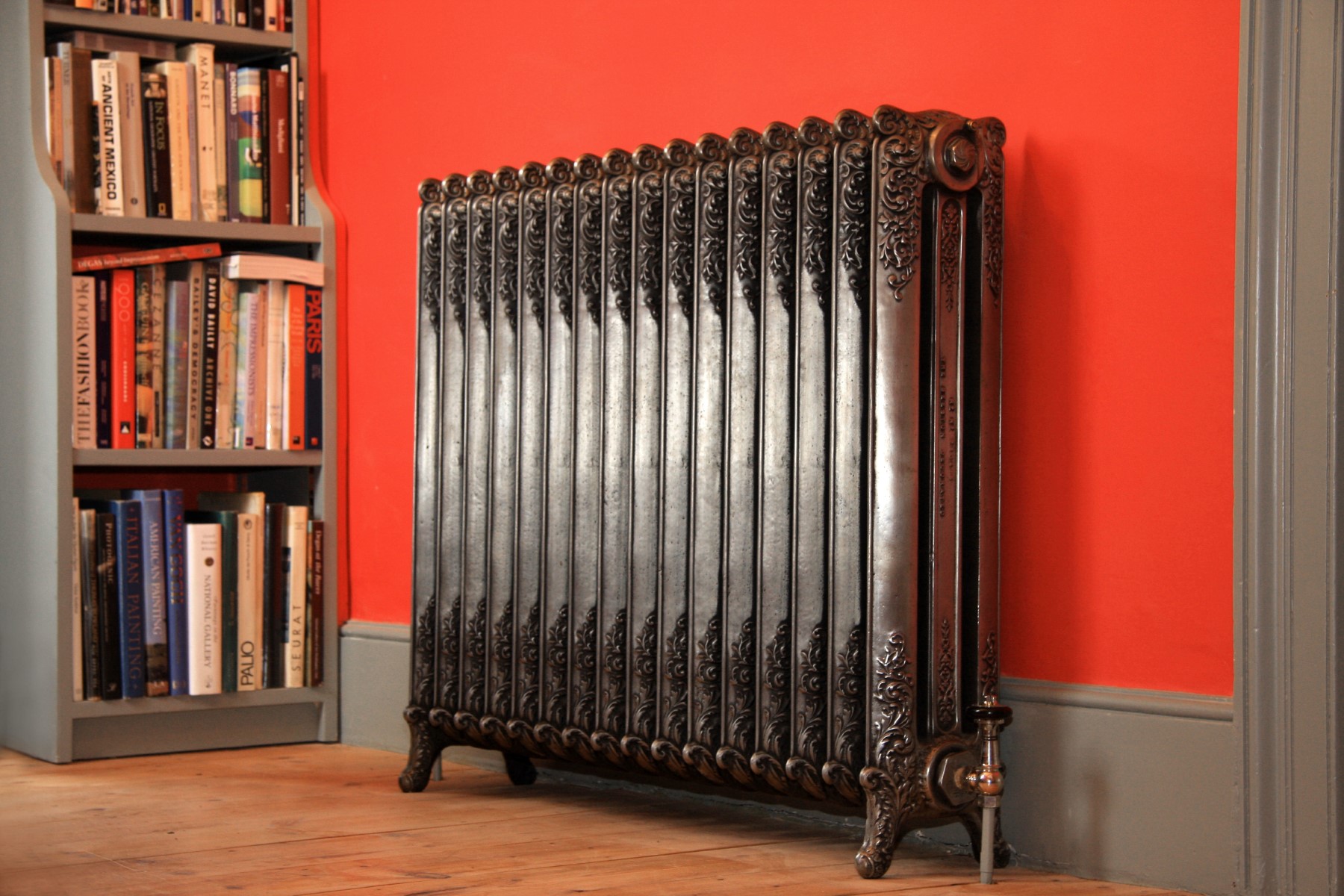

Decorated 3 Column 39in

Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 1.31 Height With Legs (mm) 1143 Height Without Legs (mm) 914 Bottom Inlet To Floor (mm) 130 Max Section Depth (mm) 254 Mid Section Depth (mm) 229 Output (ΔT50, W) 174 Output (ΔT30, W) 90 Interaxis Distance (mm) 790 Section Length (mm) 76 Internal Volume (L) 3.9 Empty Leg Section Weight (kg) 17 Empty Mid Section Weight (kg) 15.3 Casting Origin Nottingham, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-B-DE-3C39-5 5 410 870 450 1 £0.00 8049 ORC-B-DE-3C39-8 8 638 1392 720 1 £0.00 8049 Related products Princess 2 Column 36in From: £0.00 Beeston Hospital Wide 36in From: £0.00 Duchess Scroll 1 Column 36in From: £0.00 Princess 3 Column 36in From: £0.00
