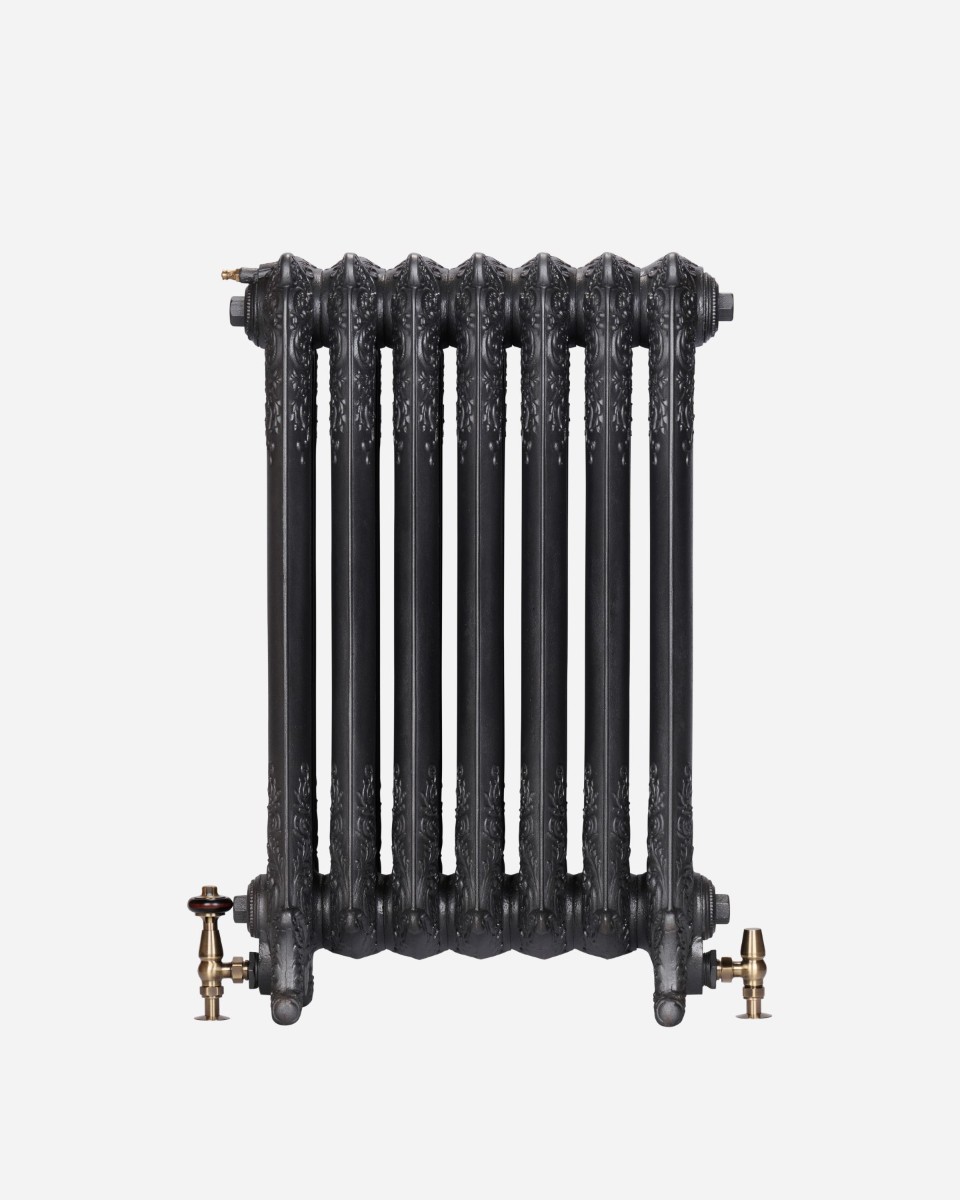

Decorated 3 Column 36in

Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 1.13 Height With Legs (mm) 914 Height Without Legs (mm) 864 Bottom Inlet To Floor (mm) 130 Max Section Depth (mm) 254 Mid Section Depth (mm) 229 Output (ΔT50, W) 150 Output (ΔT30, W) 77 Interaxis Distance (mm) 718 Section Length (mm) 76 Internal Volume (L) 3.6 Empty Leg Section Weight (kg) 15.3 Empty Mid Section Weight (kg) 13.8 Casting Origin Nottingham, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-B-DE-3C36-6 6 486 900 462 1 £0.00 8042 ORC-B-DE-3C36-7 7 562 1050 539 1 £0.00 8042 ORC-B-DE-3C36-8 8 638 1200 616 1 £0.00 8042 ORC-B-DE-3C36-10 10 790 1500 770 1 £0.00 8042 ORC-B-DE-3C36-11 11 866 1650 847 1 £0.00 8042 ORC-B-DE-3C36-14 14 1094 2100 1078 1 £0.00 8042 Related products Beeston Hospital Wide 24in From: £0.00 Decorated 3 Column 39in From: £0.00 Princess 3 Column 36in From: £0.00 Duchess Scroll 1 Column 39in From: £0.00
