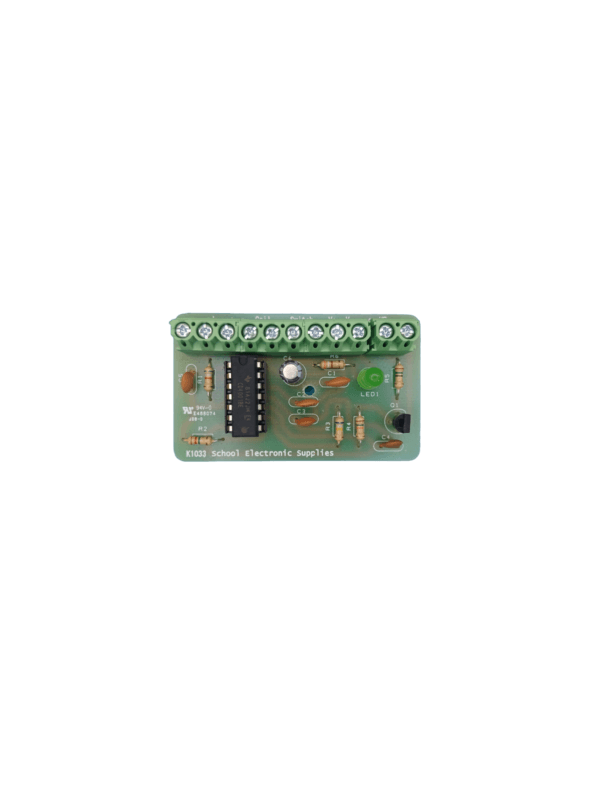

K1033 Metal Detector Kit – Explore Energy Conversion and Oscillator CircuitsThe K1033 Metal Detector Kit offers an engaging introduction to electronic signal processing and energy conversion—perfect for students exploring real-world applications of electronics. This project demonstrates how electrical energy is converted into acoustical signal energy using a CMOS Quad Gate IC to form a Beat Frequency Oscillator (BFO), with the signal then amplified through a transistor.Students will gain hands-on experience with:Oscillator and amplification circuitsAudio signal generation and detectionPractical soldering and component identificationReal-world applications of electronics in detection technologyCapable of detecting small metal objects up to 10mm below the surface (and deeper for larger items), this kit makes a great classroom project with real discovery potential—whether in the schoolyard or on a field trip to the Golden Triangle.Powered by a 9V battery (not included). Ideal for STEM, Systems Engineering, and Design & Technologies programs. SKU: K1033 Category: Kits Tags: CMOS, Design and Technologies, Designing, diy electronics, k1033, kit
