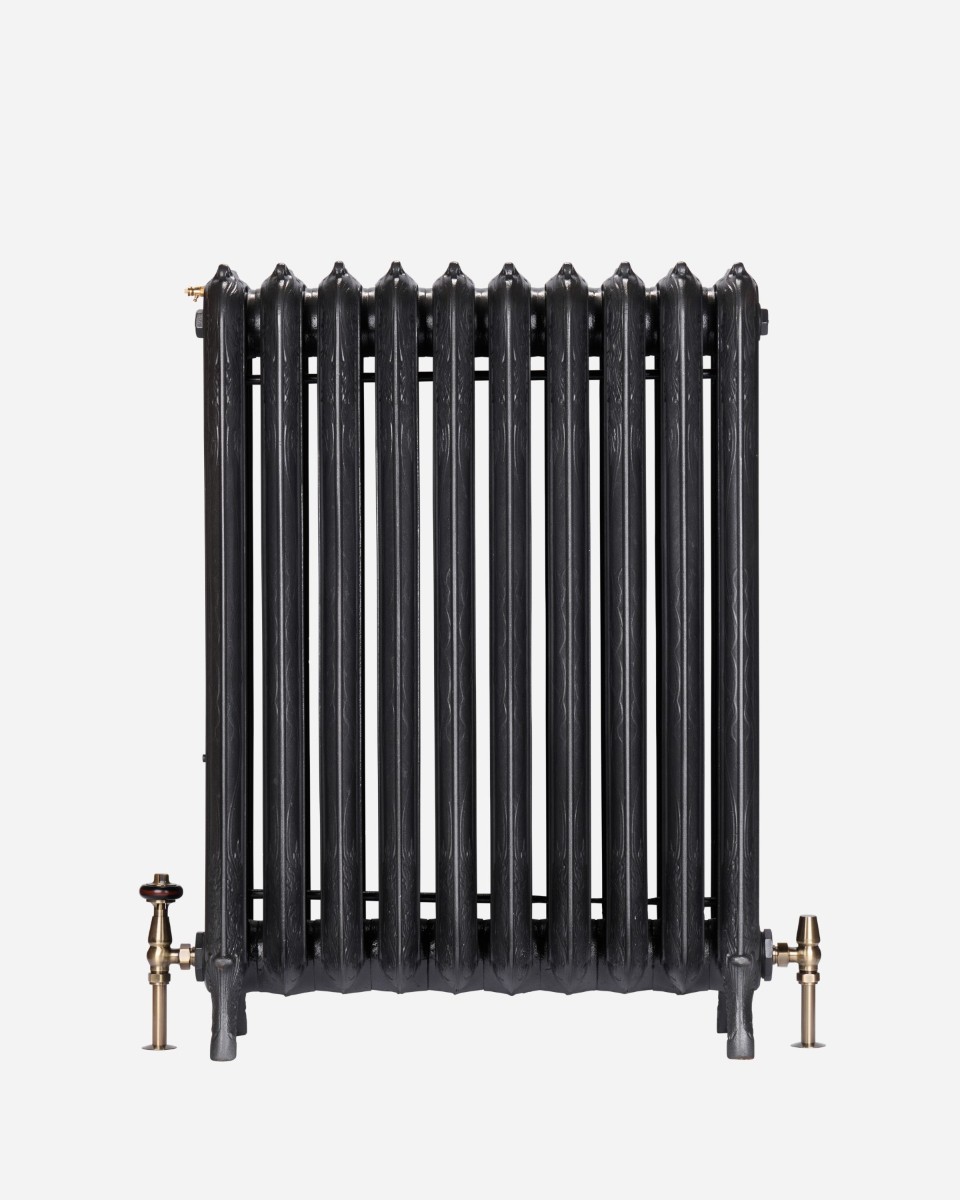

National 4 Column 38in

Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 1.82 Height With Legs (mm) 965 Height Without Legs (mm) 914 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 286 Mid Section Depth (mm) 267 Output (ΔT50, W) 242 Output (ΔT30, W) 128 Interaxis Distance (mm) 785 Section Length (mm) 70 Internal Volume (L) 4.2 Empty Leg Section Weight (kg) 19.2 Empty Mid Section Weight (kg) 17.3 Casting Origin Chicago, USA Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Conical nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-ARC-N-4C38-4 4 310 968 512 1 £0.00 7935 ORC-ARC-N-4C38-8 8 590 1936 1024 1 £0.00 7935 ORC-ARC-N-4C38-10 10 730 2420 1280 1 £0.00 7935 Related products National 1 Column 32in From: £0.00 National 2 Column 32in From: £0.00 National 2 Column 38in From: £0.00 Decorated 2 Column 18in From: £0.00
