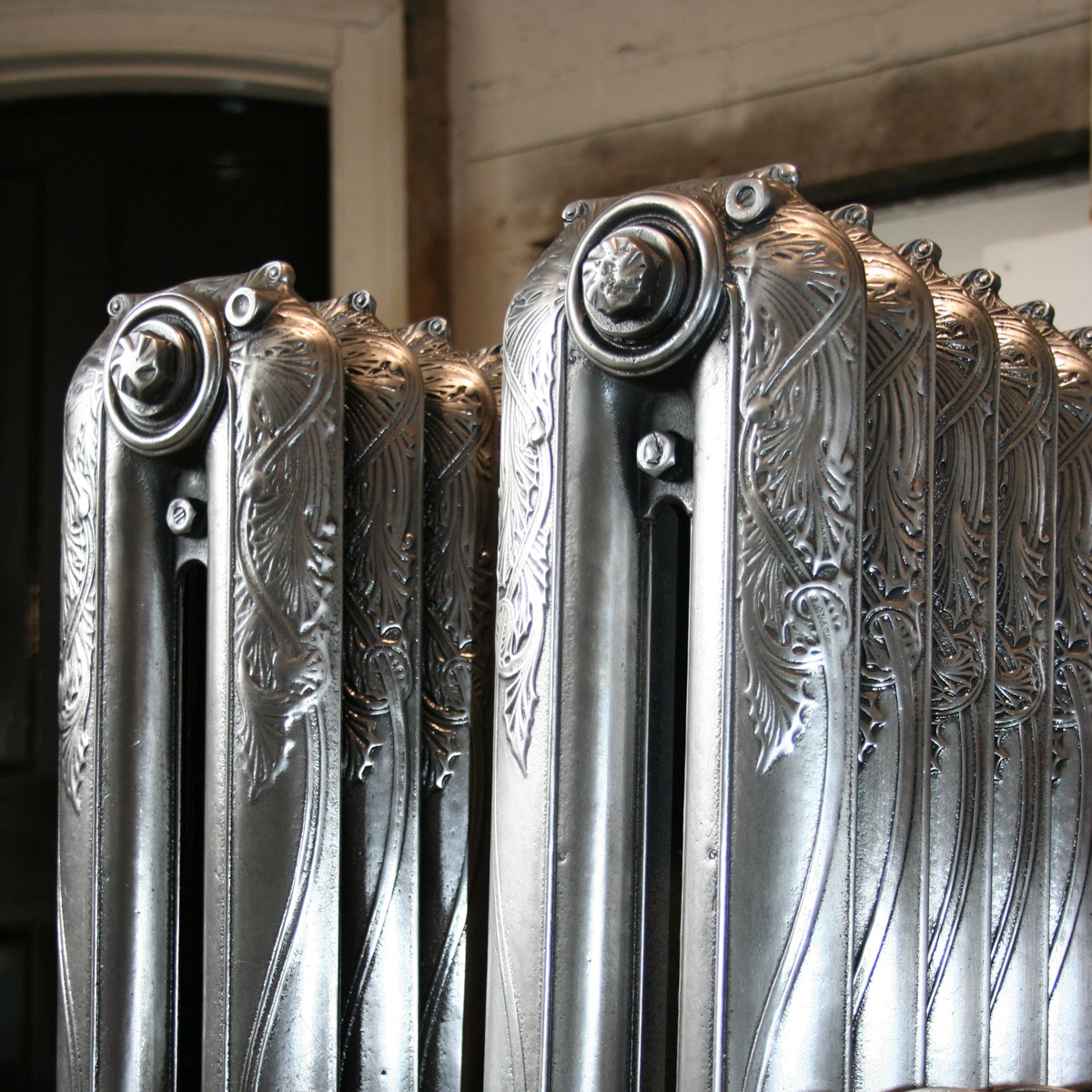

National 2 Column 38in

Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 1.06 Height With Legs (mm) 965 Height Without Legs (mm) 914 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 216 Mid Section Depth (mm) 187 Output (ΔT50, W) 141 Output (ΔT30, W) 73 Interaxis Distance (mm) 790 Section Length (mm) 64 Internal Volume (L) 3.1 Empty Leg Section Weight (kg) 11 Empty Mid Section Weight (kg) 9.9 Casting Origin Chicago, USA Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Conical nipples Connection Options BBOE, TBOE, TBSE Sizes Available
