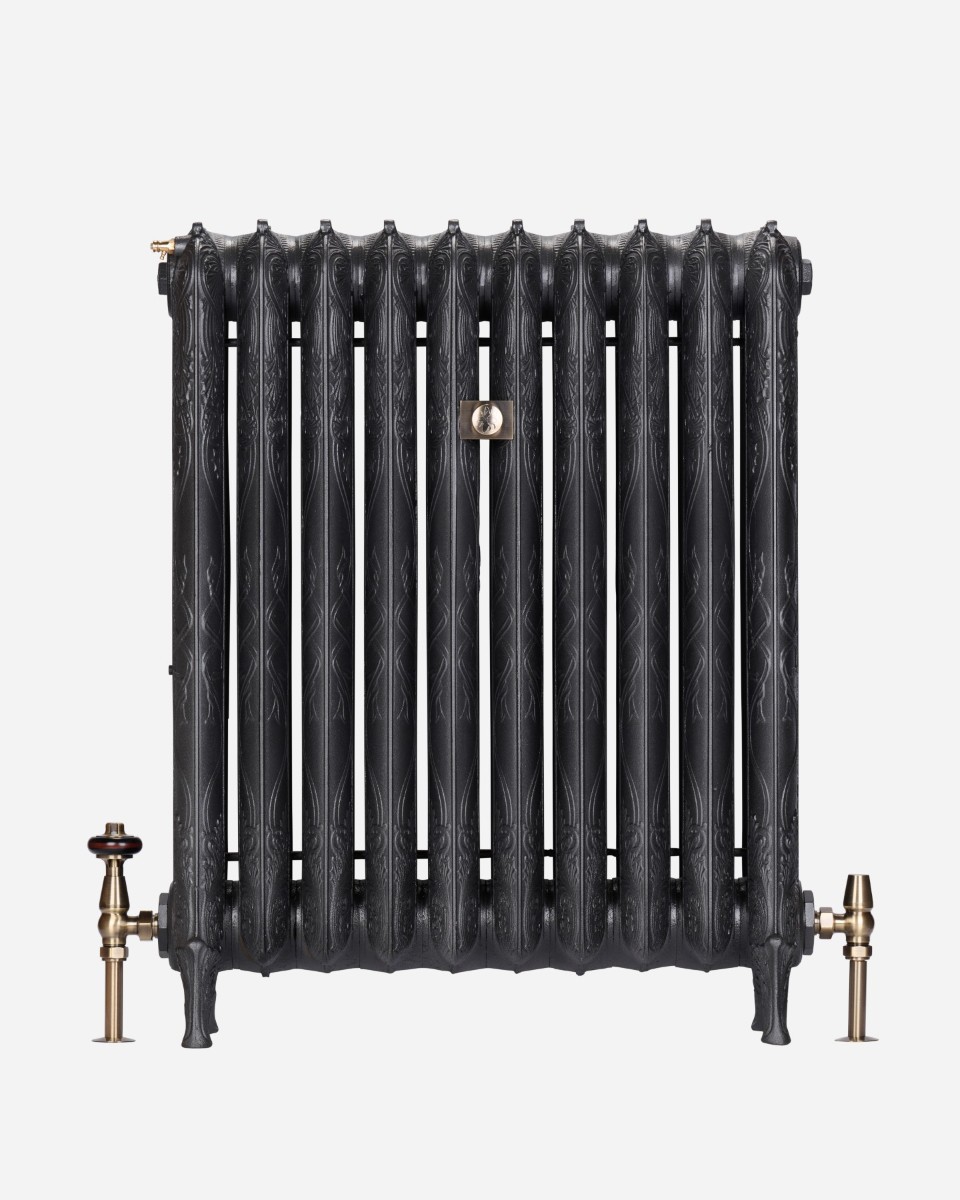

National 2 Column 32in

Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 0.86 Height With Legs (mm) 813 Height Without Legs (mm) 762 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 216 Mid Section Depth (mm) 187 Output (ΔT50, W) 115 Output (ΔT30, W) 59 Interaxis Distance (mm) 642 Section Length (mm) 64 Internal Volume (L) 2.5 Empty Leg Section Weight (kg) 9.3 Empty Mid Section Weight (kg) 8.4 Casting Origin Chicago, USA Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Conical nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-ARC-N-2C32-4 4 286 460 236 1 £0.00 7922 ORC-ARC-N-2C32-5 5 350 575 295 1 £0.00 7922 ORC-ARC-N-2C32-6 6 414 690 354 1 £0.00 7922 ORC-ARC-N-2C32-8 8 542 920 472 1 £0.00 7922 ORC-ARC-N-2C32-9 9 606 1035 531 1 £0.00 7922 ORC-ARC-N-2C32-10 10 670 1150 590 1 £0.00 7922 Related products National 2 Column 26in From: £0.00 Rococo 1 Column Ornamental 32in From: £0.00 Verona 32in From: £0.00 Rococo 2 Column Ornamental 45in From: £0.00
