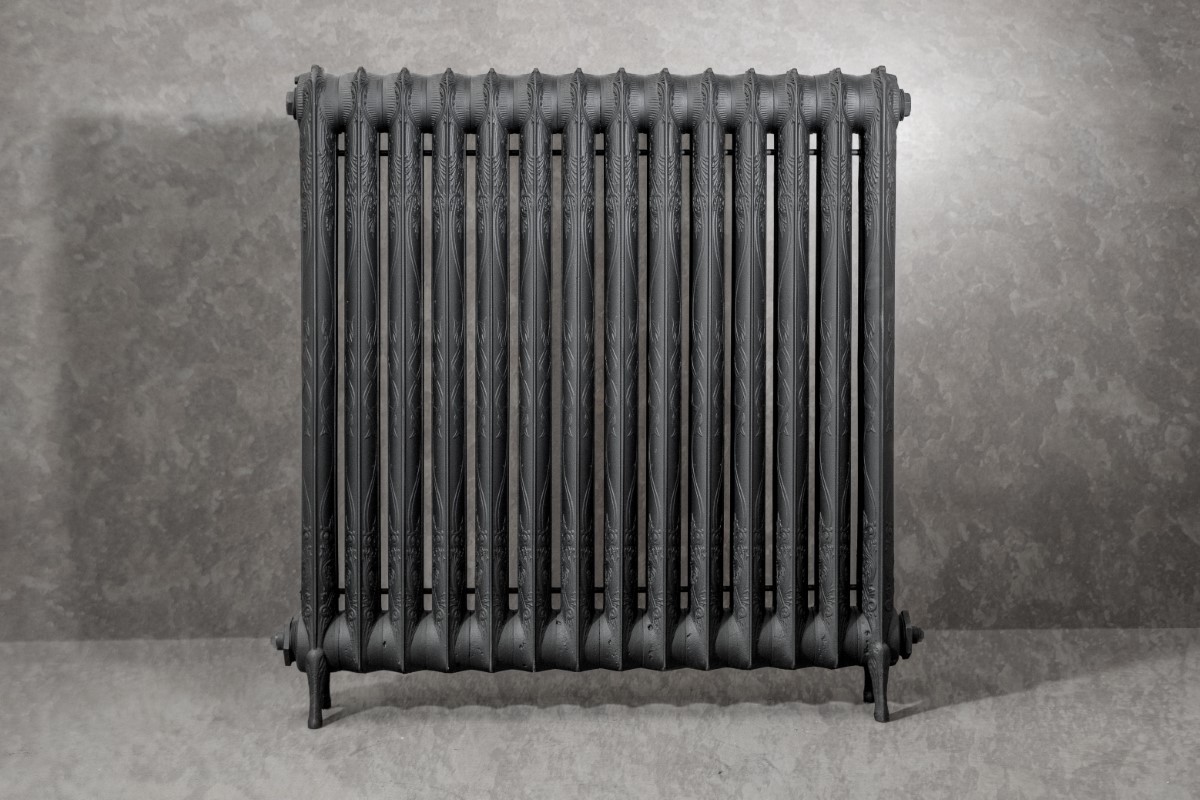

National 1 Column 38in

Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 0.86 Height With Legs (mm) 965 Height Without Legs (mm) 914 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 140 Mid Section Depth (mm) 114 Output (ΔT50, W) 114 Output (ΔT30, W) 59 Interaxis Distance (mm) 790 Section Length (mm) 64 Internal Volume (L) 1.3 Empty Leg Section Weight (kg) 8.9 Empty Mid Section Weight (kg) 8 Casting Origin Chicago, USA Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Conical nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-ARC-N38-8 8 542 912 472 1 £0.00 7948 ORC-ARC-N38-9 9 606 1026 531 1 £0.00 7948 ORC-ARC-N38-10 10 670 1140 590 1 £0.00 7948 ORC-ARC-N38-12 12 798 1368 708 1 £0.00 7948 ORC-ARC-N38-13 13 862 1482 767 1 £0.00 7948 ORC-ARC-N38-14 14 926 1596 826 1 £0.00 7948 Related products Rococo 2 Column Ornamental 26in From: £0.00 National 1 Column 26in From: £0.00 National 4 Column 38in From: £0.00 Decorated 3 Column 36in From: £0.00
