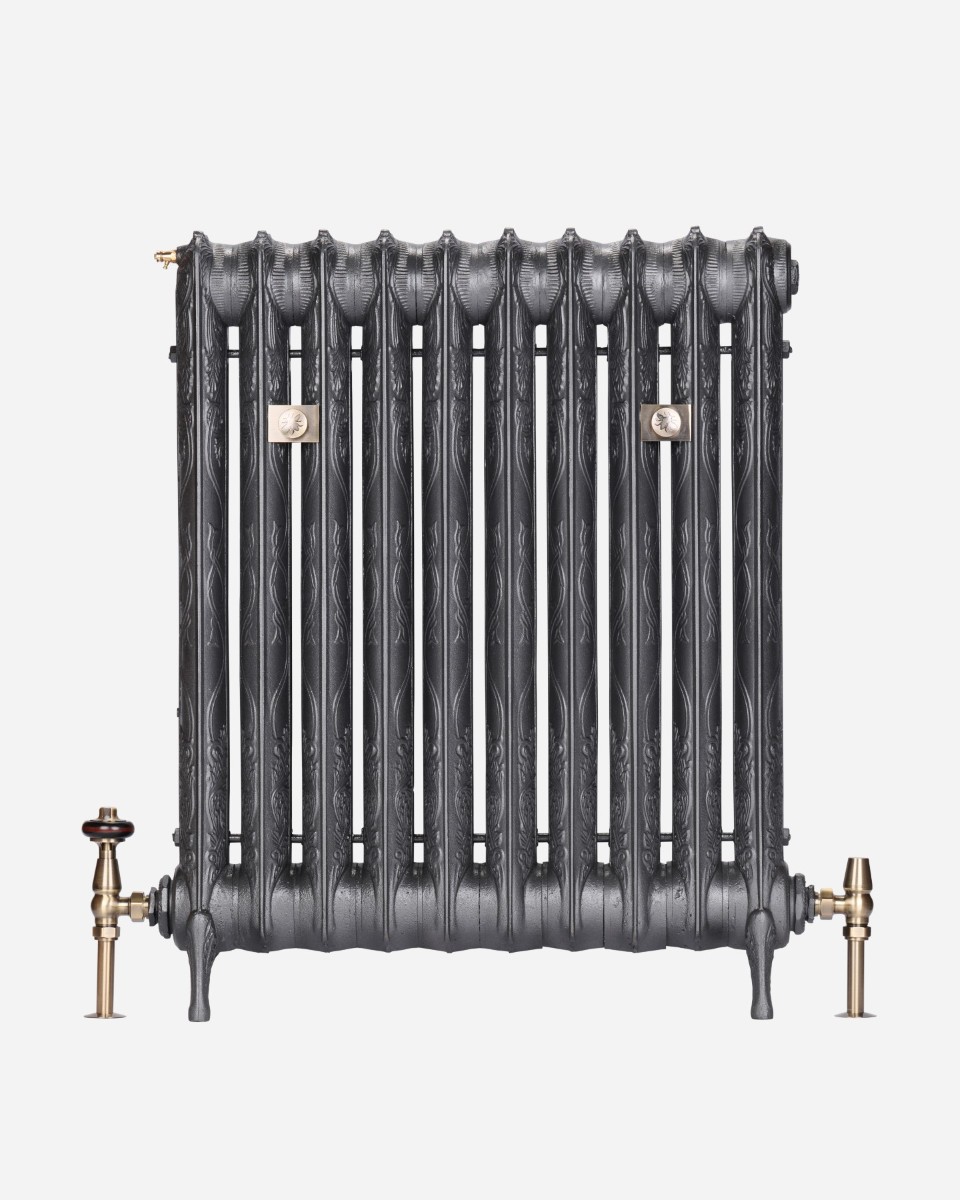

National 1 Column 32in

Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 0.72 Height With Legs (mm) 813 Height Without Legs (mm) 762 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 140 Mid Section Depth (mm) 114 Output (ΔT50, W) 96 Output (ΔT30, W) 49 Interaxis Distance (mm) 642 Section Length (mm) 64 Internal Volume (L) 1.2 Empty Leg Section Weight (kg) 8.2 Empty Mid Section Weight (kg) 7.4 Casting Origin Chicago, USA Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Conical nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-ARC-N32-5 5 350 480 245 1 £0.00 7943 ORC-ARC-N32-6 6 414 576 294 1 £0.00 7943 ORC-ARC-N32-7 7 478 672 343 1 £0.00 7943 ORC-ARC-N32-10 10 670 960 490 1 £0.00 7943 Related products Decorated 2 Column 30in From: £0.00 Rococo 1 Column Ornamental 38in From: £0.00 Italian Flue Ornamental 20in From: £0.00 Decorated 3 Column 30in From: £0.00
