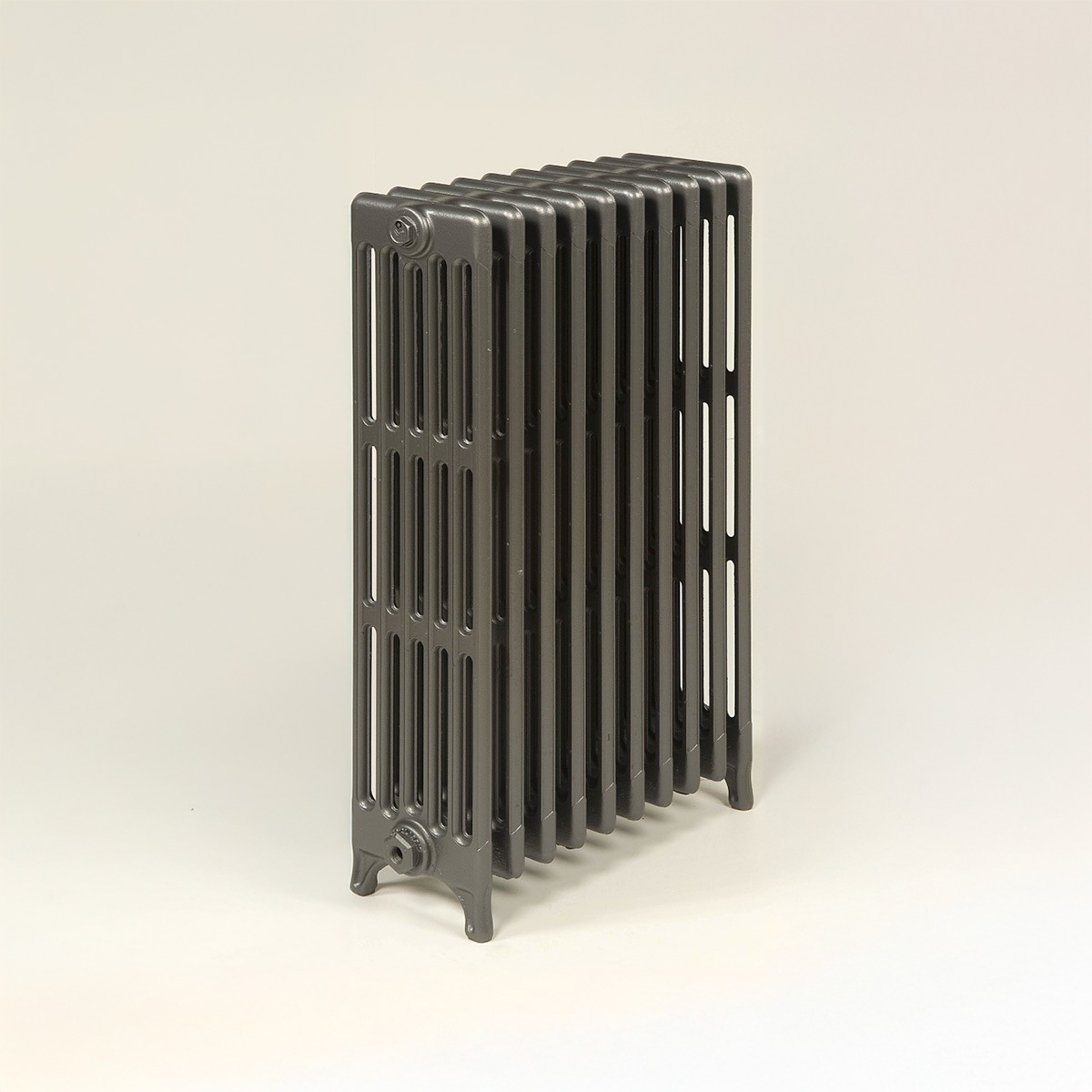

Neo Classic 6 Column 36in

Technical Data Model Specifications Attribute Value Exponent, n 1.3384 Factor, Km 0.8941 Height With Legs (mm) 914 Height Without Legs (mm) 872 Bottom Inlet To Floor (mm) 89 Max Section Depth (mm) 219 Mid Section Depth (mm) 219 Output (ΔT50, W) 168 Output (ΔT30, W) 87 Interaxis Distance (mm) 778 Section Length (mm) 57 Internal Volume (L) 1.5 Empty Leg Section Weight (kg) 12 Empty Mid Section Weight (kg) 11.3 Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-IS-NC-6C36-5 5 315 840 435 1 £0.00 8670 ORC-IS-NC-6C36-7 7 429 1176 609 1 £0.00 8670 ORC-IS-NC-6C36-10 10 600 1680 870 1 £0.00 8670 ORC-IS-NC-6C36-12 12 714 2016 1044 1 £0.00 8670 ORC-IS-NC-6C36-20 20 1170 3360 1740 1 £0.00 8670 Related products Neo Hospital Narrow 18in From: £0.00 Neo Hospital 24in From: £0.00 Neo Hospital 18in From: £0.00 Neo Classic 4 Column 18in From: £0.00
