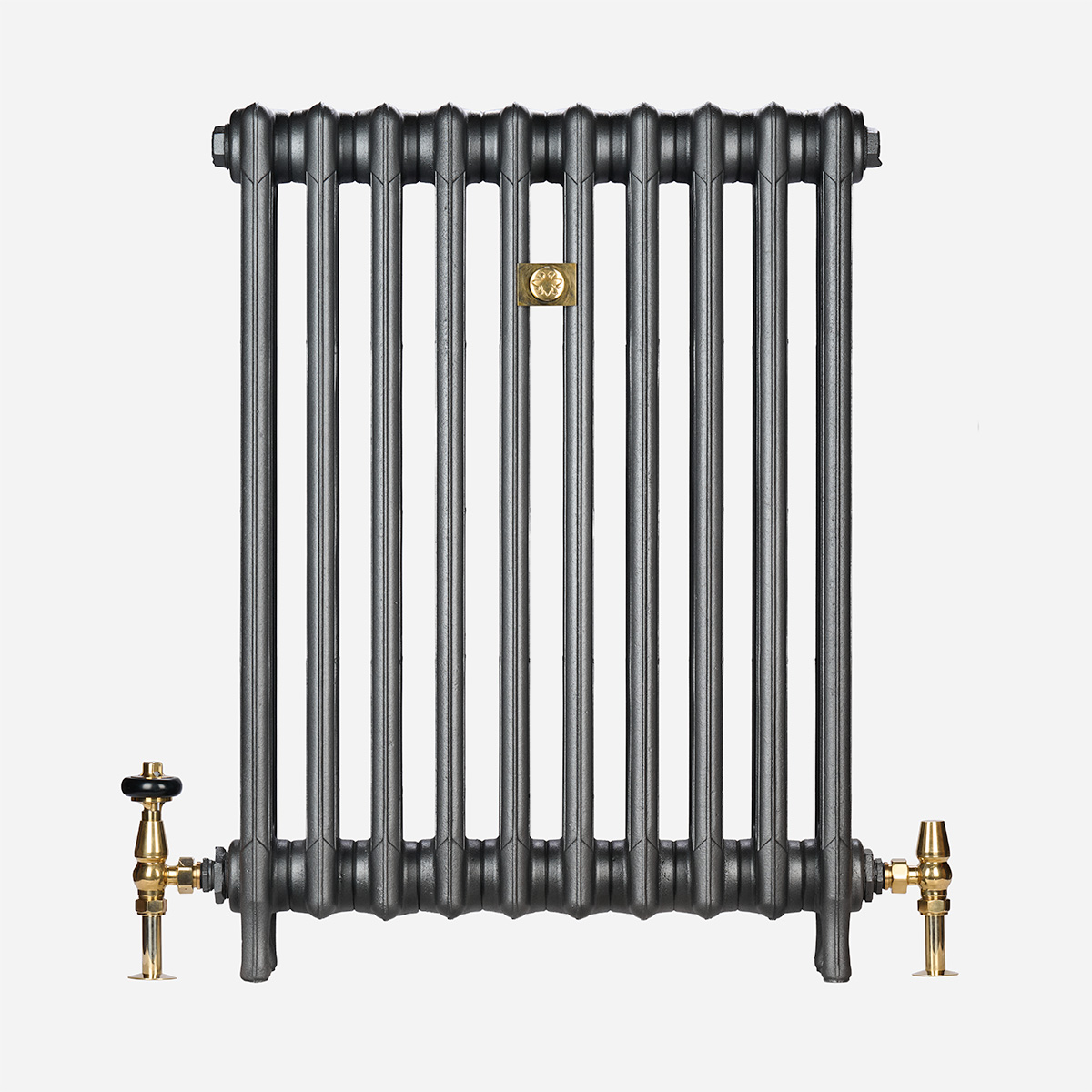

Neo Classic 4 Column 30in

Technical Data Model Specifications Attribute Value Exponent, n 1.3058 Factor, Km 0.59047 Height With Legs (mm) 762 Height Without Legs (mm) 722 Bottom Inlet To Floor (mm) 89 Max Section Depth (mm) 143 Mid Section Depth (mm) 143 Output (ΔT50, W) 98 Output (ΔT30, W) 50 Interaxis Distance (mm) 650 Section Length (mm) 57 Internal Volume (L) 0.8 Empty Leg Section Weight (kg) 6.7 Empty Mid Section Weight (kg) 6 Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-IS-NC-4C30-3 3 201 294 150 1 £0.00 8604 ORC-IS-NC-4C30-4 4 258 392 200 1 £0.00 8604 ORC-IS-NC-4C30-5 5 315 490 250 1 £0.00 8604 ORC-IS-NC-4C30-6 6 372 588 300 1 £0.00 8604 ORC-IS-NC-4C30-7 7 429 686 350 1 £0.00 8604 ORC-IS-NC-4C30-8 8 486 784 400 1 £0.00 8604 ORC-IS-NC-4C30-9 9 543 882 450 1 £0.00 8604 ORC-IS-NC-4C30-10 10 600 980 500 1 £0.00 8604 ORC-IS-NC-4C30-11 11 657 1078 550 1 £0.00 8604 ORC-IS-NC-4C30-12 12 714 1176 600 1 £0.00 8604 ORC-IS-NC-4C30-13 13 771 1274 650 1 £0.00 8604 ORC-IS-NC-4C30-14 14 828 1372 700 1 £0.00 8604 ORC-IS-NC-4C30-15 15 885 1470 750 1 £0.00 8604 ORC-IS-NC-4C30-16 16 942 1568 800 1 £0.00 8604 ORC-IS-NC-4C30-17 17 999 1666 850 1 £0.00 8604 ORC-IS-NC-4C30-19 19 1113 1862 950 1 £0.00 8604 ORC-IS-NC-4C30-20 20 1170 1960 1000 1 £0.00 8604 ORC-IS-NC-4C30-21 21 1227 2058 1050 1 £0.00 8604 ORC-IS-NC-4C30-22 22 1284 2156 1100 1 £0.00 8604 ORC-IS-NC-4C30-23 23 1341 2254 1150 1 £0.00 8604 Related products Neo Classic 4 Column 18in From: £0.00 Neo Hospital 36in From: £0.00 Neo Hospital Wide 24in From: £0.00 Neo Classic 4 Column 24in From: £0.00
