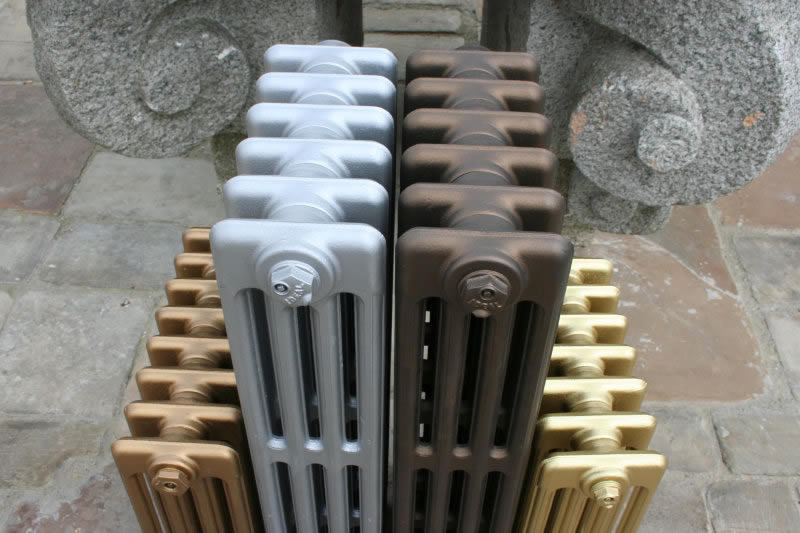

Neo Classic 4 Column 24in

Technical Data Model Specifications Attribute Value Exponent, n 1.2541 Factor, Km 0.5699 Height With Legs (mm) 610 Height Without Legs (mm) 560 Bottom Inlet To Floor (mm) 79 Max Section Depth (mm) 143 Mid Section Depth (mm) 143 Output (ΔT50, W) 77 Output (ΔT30, W) 40 Interaxis Distance (mm) 500 Section Length (mm) 51 Internal Volume (L) 0.7 Empty Leg Section Weight (kg) 5.5 Empty Mid Section Weight (kg) 4.8 Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-IS-NC-4C24-3 3 183 231 120 1 £0.00 8574 ORC-IS-NC-4C24-7 7 387 539 280 1 £0.00 8574 ORC-IS-NC-4C24-8 8 438 616 320 1 £0.00 8574 ORC-IS-NC-4C24-9 9 489 693 360 1 £0.00 8574 ORC-IS-NC-4C24-10 10 540 770 400 1 £0.00 8574 ORC-IS-NC-4C24-11 11 591 847 440 1 £0.00 8574 ORC-IS-NC-4C24-12 12 642 924 480 1 £0.00 8574 ORC-IS-NC-4C24-13 13 693 1001 520 1 £0.00 8574 ORC-IS-NC-4C24-14 14 744 1078 560 1 £0.00 8574 ORC-IS-NC-4C24-15 15 795 1155 600 1 £0.00 8574 ORC-IS-NC-4C24-16 16 846 1232 640 1 £0.00 8574 ORC-IS-NC-4C24-17 17 897 1309 680 1 £0.00 8574 ORC-IS-NC-4C24-18 18 948 1386 720 1 £0.00 8574 ORC-IS-NC-4C24-20 20 1050 1540 800 1 £0.00 8574 ORC-IS-NC-4C24-22 22 1152 1694 880 1 £0.00 8574 ORC-IS-NC-4C24-25 25 1305 1925 1000 1 £0.00 8574 ORC-IS-NC-4C24-27 27 1407 2079 1080 1 £0.00 8574 ORC-IS-NC-4C24-34 34 1764 2618 1360 1 £0.00 8574 Related products Neo Hospital Narrow 24in From: £0.00 Neo Classic 4 Column 30in From: £0.00 Neo Classic 2 Column 24in From: £0.00 Neo Classic 6 Column 24in From: £0.00
