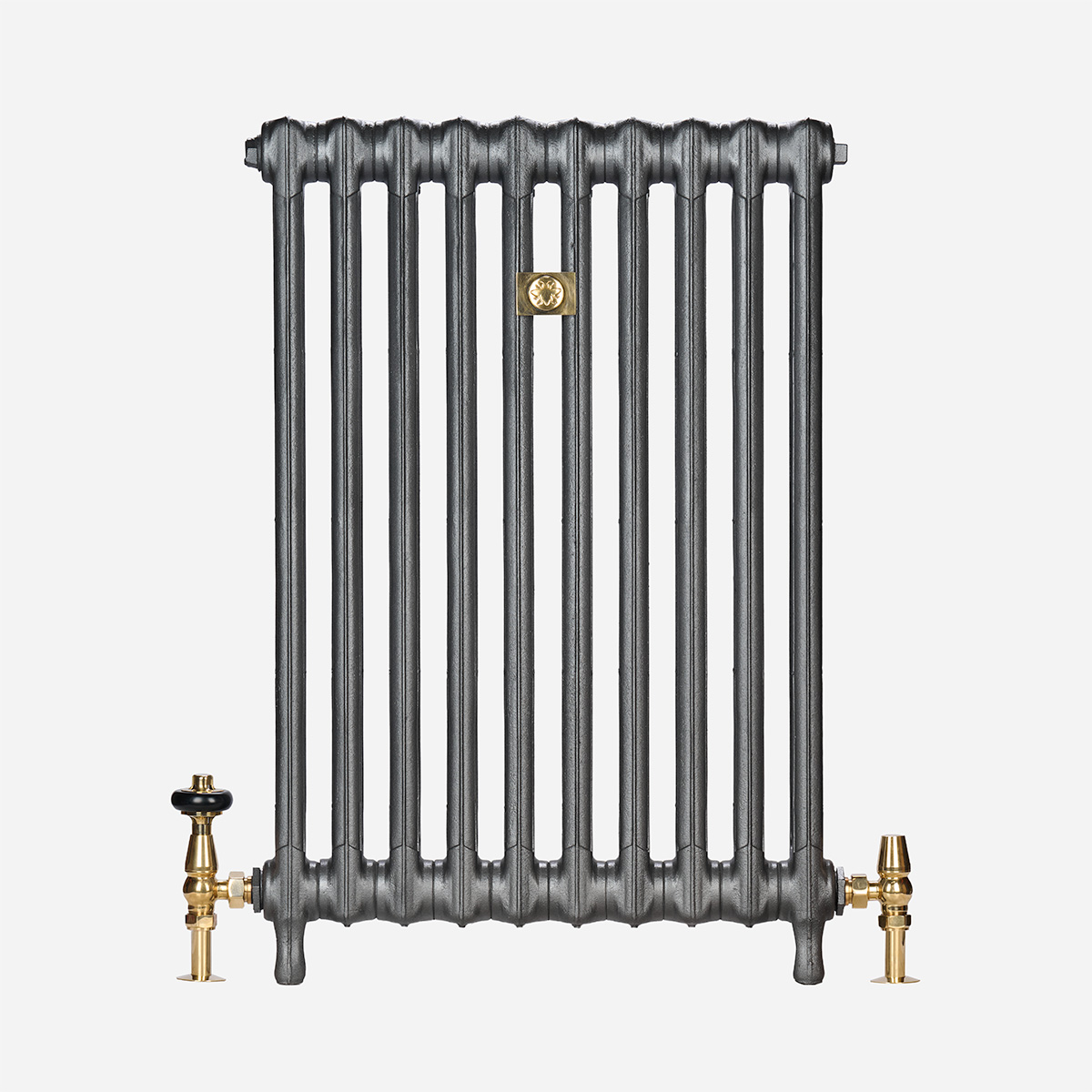

Neo Classic 2 Column 30in

Technical Data Model Specifications Attribute Value Exponent, n 1.2669 Factor, Km 0.4127 Height With Legs (mm) 762 Height Without Legs (mm) 710 Bottom Inlet To Floor (mm) 79 Max Section Depth (mm) 67 Mid Section Depth (mm) 67 Output (ΔT50, W) 58 Output (ΔT30, W) 30 Interaxis Distance (mm) 650 Section Length (mm) 51 Internal Volume (L) 0.5 Empty Leg Section Weight (kg) 4.2 Empty Mid Section Weight (kg) 3.6 Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-IS-NC-2C30-3 3 183 174 90 1 £0.00 8528 ORC-IS-NC-2C30-7 7 387 406 210 1 £0.00 8528 ORC-IS-NC-2C30-8 8 438 464 240 1 £0.00 8528 ORC-IS-NC-2C30-9 9 489 522 270 1 £0.00 8528 ORC-IS-NC-2C30-10 10 540 580 300 1 £0.00 8528 ORC-IS-NC-2C30-11 11 591 638 330 1 £0.00 8528 ORC-IS-NC-2C30-12 12 642 696 360 1 £0.00 8528 ORC-IS-NC-2C30-13 13 693 754 390 1 £0.00 8528 ORC-IS-NC-2C30-14 14 744 812 420 1 £0.00 8528 ORC-IS-NC-2C30-15 15 795 870 450 1 £0.00 8528 ORC-IS-NC-2C30-16 16 846 928 480 1 £0.00 8528 ORC-IS-NC-2C30-17 17 897 986 510 1 £0.00 8528 ORC-IS-NC-2C30-18 18 948 1044 540 1 £0.00 8528 ORC-IS-NC-2C30-19 19 999 1102 570 1 £0.00 8528 ORC-IS-NC-2C30-20 20 1050 1160 600 1 £0.00 8528 ORC-IS-NC-2C30-21 21 1101 1218 630 1 £0.00 8528 ORC-IS-NC-2C30-22 22 1152 1276 660 1 £0.00 8528 ORC-IS-NC-2C30-23 23 1203 1334 690 1 £0.00 8528 ORC-IS-NC-2C30-30 30 1560 1740 900 1 £0.00 8528 Related products Neo Classic 2 Column 24in From: £0.00 Neo Hospital 24in From: £0.00 Neo Classic 2 Column 18in From: £0.00 Neo Hospital Wide 36in From: £0.00
