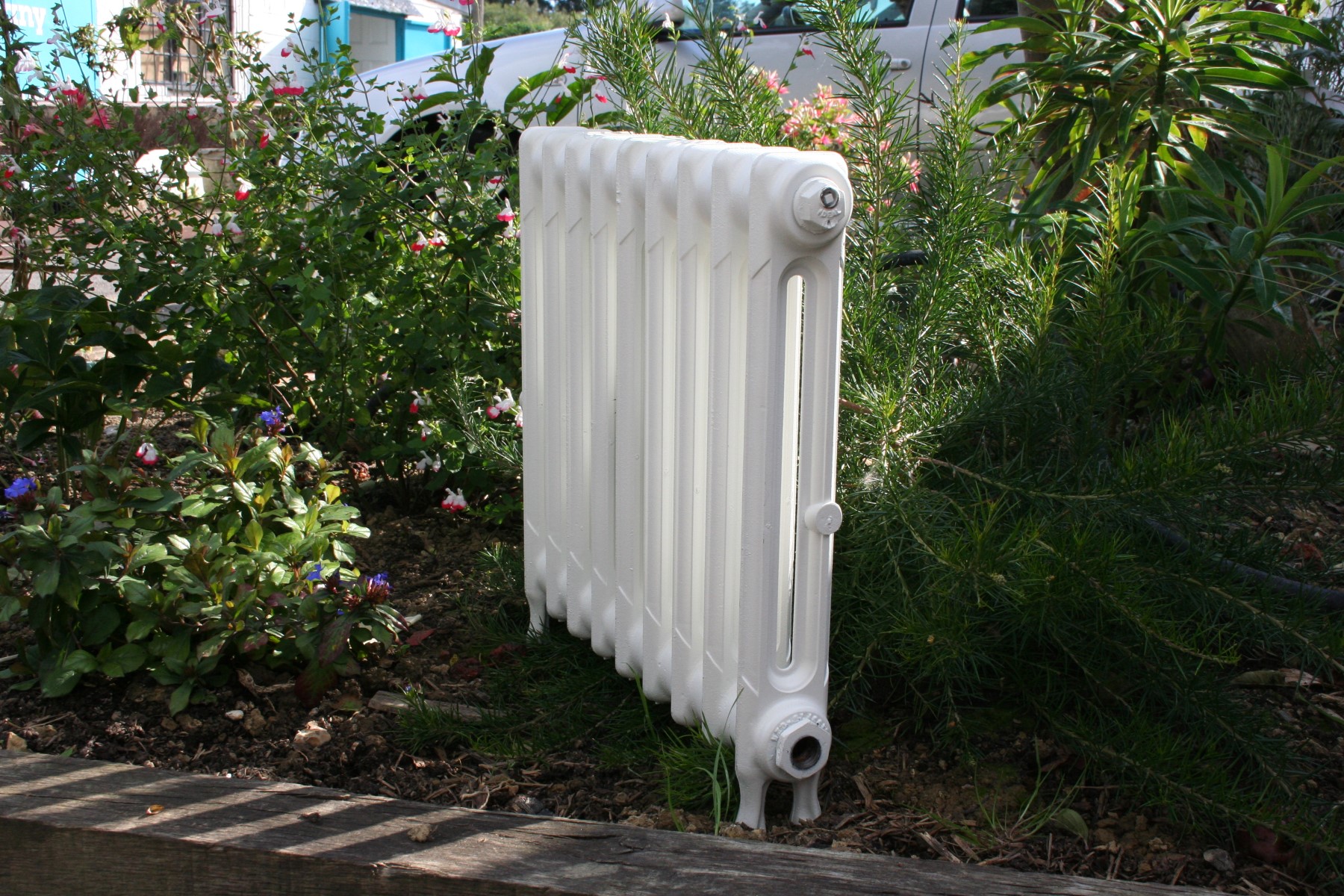

Neo Classic 2 Column 18in

Technical Data Model Specifications Attribute Value Exponent, n 1.2008 Factor, Km 0.32163 Height With Legs (mm) 457 Height Without Legs (mm) 410 Bottom Inlet To Floor (mm) 79 Max Section Depth (mm) 67 Mid Section Depth (mm) 67 Output (ΔT50, W) 35 Output (ΔT30, W) 18 Interaxis Distance (mm) 350 Section Length (mm) 51 Internal Volume (L) 0.3 Empty Leg Section Weight (kg) 2.7 Empty Mid Section Weight (kg) 2.2 Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-IS-NC-2C18-6 6 336 210 108 1 £0.00 8492 ORC-IS-NC-2C18-7 7 387 245 126 1 £0.00 8492 ORC-IS-NC-2C18-10 10 540 350 180 1 £0.00 8492 ORC-IS-NC-2C18-11 11 591 385 198 1 £0.00 8492 ORC-IS-NC-2C18-14 14 744 490 252 1 £0.00 8492 ORC-IS-NC-2C18-15 15 795 525 270 1 £0.00 8492 ORC-IS-NC-2C18-16 16 846 560 288 1 £0.00 8492 ORC-IS-NC-2C18-18 18 948 630 324 1 £0.00 8492 ORC-IS-NC-2C18-19 19 999 665 342 1 £0.00 8492 ORC-IS-NC-2C18-20 20 1050 700 360 1 £0.00 8492 ORC-IS-NC-2C18-23 23 1203 805 414 1 £0.00 8492 ORC-IS-NC-2C18-24 24 1254 840 432 1 £0.00 8492 ORC-IS-NC-2C18-26 26 1356 910 468 1 £0.00 8492 ORC-IS-NC-2C18-30 30 1560 1050 540 1 £0.00 8492 ORC-IS-NC-2C18-32 32 1662 1120 576 1 £0.00 8492 ORC-IS-NC-2C18-33 33 1713 1155 594 1 £0.00 8492 ORC-IS-NC-2C18-34 34 1764 1190 612 1 £0.00 8492 Related products Neo Classic 2 Column 30in From: £0.00 Neo Hospital Wide 18in From: £0.00 Neo Classic 6 Column 30in From: £0.00 Neo Hospital Wide 36in From: £0.00
