Log Splitter Build Kit, 16 GPM Pump, 4.5″ Cylinder, A7 Valve, Mount Coupler – Crankshaft Size:For 3/4″ Engine Crankshaft

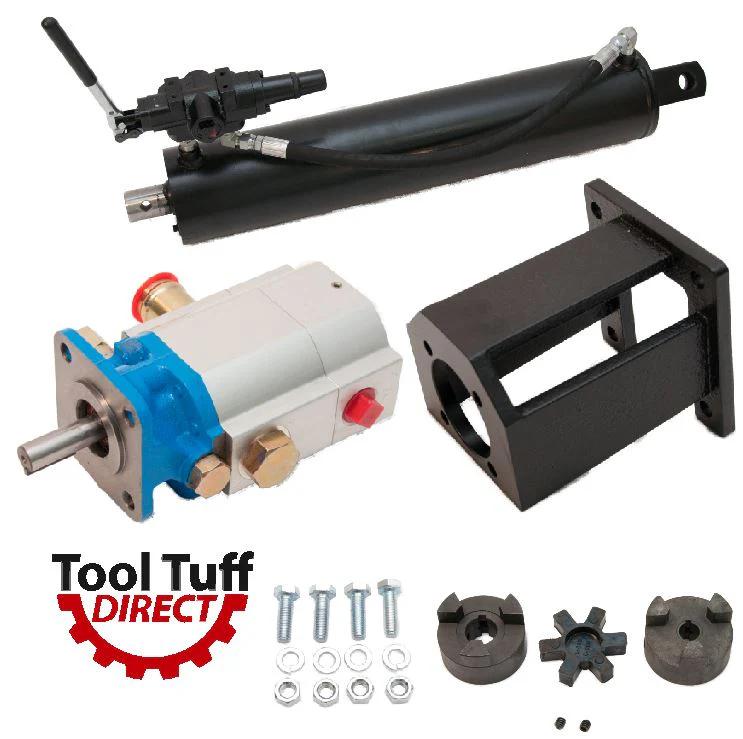

Description4.5″ Diameter Cylinder, High Pressure Line, 16 GPM Log Splitter Pump, Mount, Auto-Return Detent Valve and Coupler Kit w/Bolts/FittingsFrom Tool Tuff Direct – Your Source for Log Splitter Parts Since 2012! Build your own log splitter setup with this convenient kit!  Bolt this to your engine, and run some suction/discharge hoses and you’re in business!  Picture shows valve connected to cylinder – it is shipped separate, just screw in the included fittings with some thread tape and you’ll be golden!  INCLUDES: 16 GPM 2 Stage Hydraulic Log Splitter PumpThis is same pump used by SpeeCo, Champion, Huskee, Oregon, MTD and many others. Use as a replacement or a “build it yourself splitter”The 2-stage pump can give you faster cycle times and higher possible pressures with a small engine.  Excellent for use on log splitters, 85% efficient.Recommended 8 HP engineSpecifications:New Hydraulic Log Splitter Pump 16 GPM @ 3600RPM.Model # GP-CBN-160Shaft: ½” (key included)Inlet: 1” Outlet: ½” NPTDimensions: 5.5”L  x  3”H  x  4”WMinimum HP: 8RPM Requirement: 3600 for 16 GPM, pump can be operated with lower RPM’sFor use with open center hydraulic systems only1st Stage: 13 GPM@650 PSI2nd Stage: 3 GPM@2500 PSIMaximum Pressure: 4000 PSIBolt Circle: 2.83in.4 Bolt Holes Spaced 2in. on CenterBolt Hole Diameter: .344in.Rotation: ClockwiseWe are not responsible and will not warranty customer cross threading  hydraulic fittings or stripping out threads into this pump, if you are not familiar with tightening or installing pipe threads into aluminum then you will need to have someone familiar with doing so.  Lovejoy LO90 Coupler This kit includes two coupler halves and one rubber spider. A7 Auto-Return Log Splitter Valve  (We have other valves available – if the schematic looks different than your valve, message us and we can substitute it)Valve Specs:Single spool, Open center.Max pressure rating: 3500psi.Relief valve set at 3100psi but is adjustable.Working ports ½”NPT.In/Out ports ¾” NPTDetent Pressure set at 700 psi but is adjustable.Compatible with most splitters (SpeeCo, MTD, Brave, Swisher etc)Threaded end cap for easy detent adjustment Mounting bracket holes (4) are 5/16-18 thread pitch and are spaced 1″ x 2-5/8″ apartThis is the next generation in log splitter valves. The detent is usually what wears out and causes valves to fail. This valve allows user to adjust the kick out pressure to what they need and as detent balls and grooves wear.Pump to Mount Bolts, Lock Washers, NutsIncludes the required bolts, nuts and lock washers required to mount the pump to the mount.  You’ll supply your own engine mounting bolts.   Log Splitter Valve, Adjustable Detent. Single spool, Open center.Max pressure rating: 3500psi.Relief valve set at 3000psi but is adjustable.Working ports ½”NPT.In/Out ports ¾” NPTDetent Pressure set at 700 psi but is adjustable.Compatible with most splitters (SpeeCo, MTD, Brave, Swisher etc)Screw off end cap for easily detent pressure adjustability4.5″ Bore x 24″ Stroke Hydraulic Log Splitter Cylinder (OEM Replacement for TSC, Huskee,SplitMaster, Oregon, SpeeCo, Etc)In addition to being great “build it yourself splitter” parts, our cylinders will replace your original worn-out double acting TSC, Huskee, SplitMaster, Oregon, SpeeCo and many other Log Splitter cylinders that have the double-ear mounting clevis as shown in our pictures without any modifications needed. Most of the time they are direct-fit.  All fit-up dimensions are listed in the picture section of this add.Quick Specifications:All welded designDirect replacement for TSC Husky, SplitMaster, Oregon, SpeeCo and many othersUSA sellerThis cylinder to be used with any 2 stage gear pump (Common are 11gpm, 13gpm and 16gpm)Provides approximately 27 tons of splitting forceDouble-Acting (Forward and ReverseRebuildable (seals can be replaced)1-3/4″ Chrome rod with 9/16″ mounting hole for wedge mountingDouble mounting clevis design to accept 1-1/8″24″ stroke4-1/2″ diameter bore1/2″ NPT hydraulic ports3500 maximum operating pressurePainted black1-1/8″ Clevis mounting holes to mount cylinder at front of beamProvides about 28 tons of splitting force!Pump Mount for hydraulic log splitter, 8-15 HPThis pump mount is commonly used to mount hydraulic pumps to engines on log splitters.This is the OEM mount used by Husky, Splitmaster, SpeeCo. and Oregon 20, 21 and 22 ton units…Can also be used on many other brands.Engine Side Holes: 3-9/16″ bolt circle (4 hole pattern) OR 2-1/2″ center to center hole distance measured horizontal or vertically (square)Pump Side Hole: 2-3/4″ bolt circle (8 hole pattern) OR 2″ center to center hole distance measured horizontal or verticallyHeight: 5-1/4″Square engine side clearance hole is 2″ x 2″Powder CoatedSand casted part – will have sand casted texture – pump and engine mount surfaces are machined smooth
